Linings

Quick search

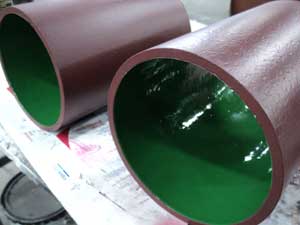

Epoxy Lining

Epoxy Lining

Figure# Linings

Niles Steel Tank’s Defender Epoxy™ Lining has been formulated to be a superior lining for tanks and vessels. Working closely with formulators and chemical engineers, Niles has developed a strong, heat resistant durable epoxy coating for use in hot water applications. The NST formula is an effective coating against corrosion for potable water storage tanks, water filtration tanks, process tanks and pipe and fittings by providing excellent protection against the destructive nature of hot water.

View Details >

Sludge Block Lining

Sludge Block Lining

Figure# Linings

Niles Sludge Block has been specially formulated for use in wastewater treatment pipe and fittings. Nile Sludge Block offers a high level of protection against the buildup of crystalline metal salt deposits. And, prevents the buildup of grease and scum on the pipe wall.Niles Sludge Block is a 2 coat system where each layer is roughly 10 to 12 mils thick (20 to 24 mils total coverage) applied to properly prepared substrates.

View Details >

Ultonium Lining

Ultonium Lining

Figure# Linings

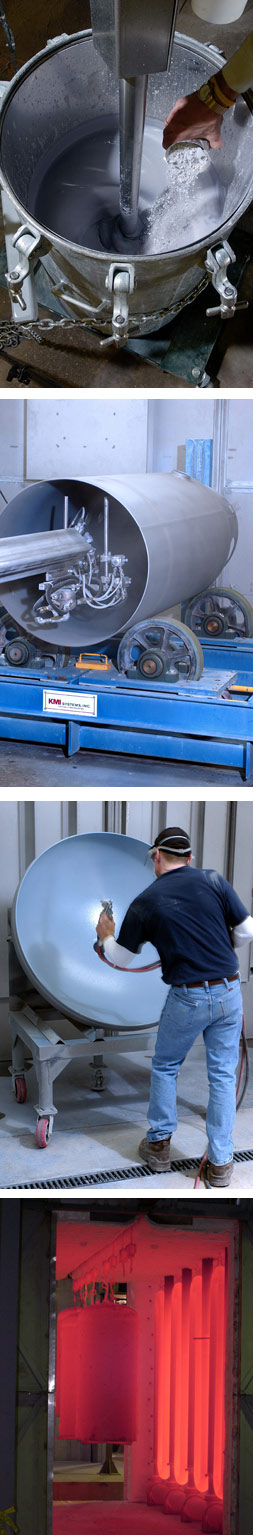

Each vessel is cleaned and sandblasted for surface roughness. An automatic sprayer then applies 20 mils of wet Ultonium glass enamel to the inside of the tank. The partial vessel is then dried in a curing oven at 400° until all moisture is removed. At this point the dried enamel is called bisque and is semi bonded to the vessel wall. Vessels are then fired at 1500°, the melting point of Ultonium, and “soaked” at that temperature for a period…

View Details >

Ultonium II

Ultonium II

Figure# Linings

Niles Steel Tank offers Ultonium II, a premium glass lining for pipe and fittings applications allowing process temperatures to 350 degrees F. Ultonium II glass is Cobalt blue, formulated with special bonding agents to be amenable to both steel and ductile iron, developing a strong chemical bond between the glass and substrate during the fusing operation. Ultonium II is a multi-coat system achieving a finished thickness of 12 mils nominal, and is inspected both visually and by spark test to…

View Details >
